Fits 17-26 Ford F250/F350 6.2L, 6.8L, 7.3L Gas FFX Direct Fit Muffler Exhaust System, 409 stainless steel

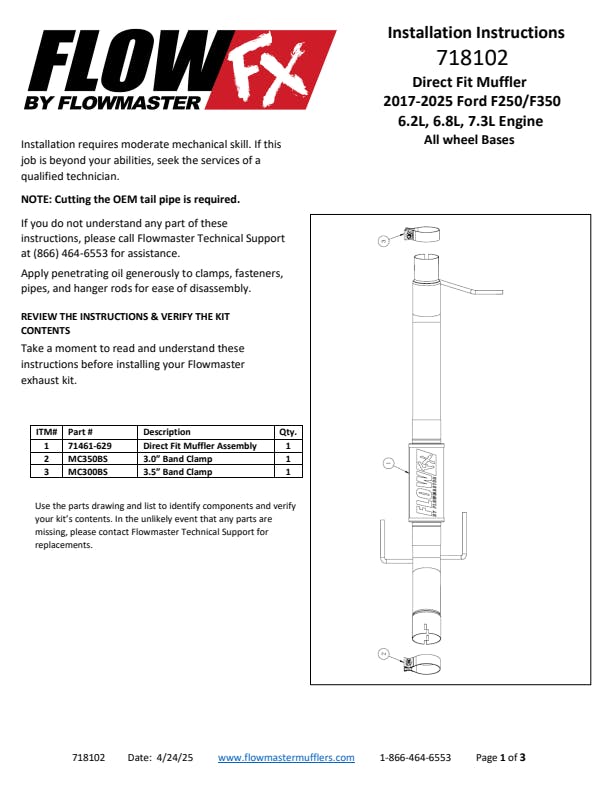

Flowmaster's® FlowFX Direct-Fit Muffler exhaust system for the 2017-2026 Ford F250/F350 Super Duty trucks with the 6.2L, 6.8L and 7.3L gas engines gives you a great value packed way to help you customize your Ford truck to your personality. This performance muffler system fits both 2/4 Wheel drive models and is manufactured from 409 stainless steel for years of trouble-free service and performance. Features include a 3.50-inch inlet pipe leading into a 409 stainless steel Flow FX series "straight-through" muffler for great sound and maximum performance. The muffler then connects to the factory tailpipe for a simple and effective performance upgrade. Max dyno gains of 12 hp and 11 lb-ft at the rear wheels delivers power you can feel. This results in better acceleration and towing performance. The system uses all the factory hanger locations and connections for an easy installation that you can do at home. Kits include installation instructions and all necessary hardware. Backed by Flowmaster's Lifetime Limited Warranty.
- 3.5-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability
- Kit includes complete hardware and factory styled hangers in the stock locations for an easy installation
- A tuned Flow FX style muffler delivers a deep, aggressive to moderate performance tone and improves exhaust flow
- Max increases of up to 12 hp and 11 lb-ft over the stock exhaust at the wheels
- Tuned performance muffler eliminates interior drone
- Maintains factory warranty
- Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2017-2026 |
Ford F-250 Super Duty |
| 2017-2026 |
Ford F-350 Super Duty |
| Attributes |
| Body Diameter |
4.50 |
| Body Height |
4.50 |
| Body Length |
10.00 |
| Body Material |
409 Stainless Steel |
| Body Width |
4.50 |
| Brand |
Flowmaster |
| California Proposition 65 |
Yes |
| Catalytic Converter Included |
No |
| Category |
Exhaust |
| Clamping Type |
Flat Band |
| Clamps Included |
Yes |
| Color |
Natural |
| Country of Origin (Primary) |
US |
| Emission Code |
5 |
| Exhaust Series |
FlowFX |
| Exit Position |
OEM |
| Finish |
Natural |
| GTIN |
00090127976487 |
| Gasket Or Seal Included |
No |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Heat Shield |
No |
| Heat Shield Attached |
No |
| Inlet Diameter |
3.5 |
| Inlet Inside Diameter |
2.98 |
| Inlet Location |
Center |
| Inlet Outside Diameter |
3.11 |
| Inlet Quantity |
1 |
| Inlet Type |
Slip-Fit |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
Center |
| Material |
409 Stainless Steel |
| Mount Type |
Uses Factory Hangers |
| Muffler Body Length |
10 |
| Muffler Body Length (in) |
10 |
| Muffler Body Material |
409 Stainless Steel |
| Muffler Body Shape |
Round |
| Muffler Body Width |
4.5 |
| Muffler Color |
Natural |
| Muffler Finish |
Natural |
| Muffler Inlet Location |
Center |
| Muffler Material |
409 Stainless Steel |
| Muffler Outlet Location |
Center |
| Muffler Part Number |
Kit Only |
| Muffler Quantity |
1 |
| Muffler Series |
FlowFX |
| Muffler Shape |
Round |
| Muffler Type |
Absorption |
| Outlet Diameter |
3.5 |
| Outlet Inside Diameter |
3.52 |
| Outlet Location |
Center |
| Outlet Outside Diameter |
3.65 |
| Outlet Quantity |
1 |
| Outlet Type |
Slip-Fit |
| Overall Length |
49.60 |
| Pipe Material |
409 Stainless Steel |
| Product Type |
Exhaust System |
| SDR Required Flag |
N |
| Shape |
Round |
| Single Dual |
Single |
| Sound Level |
Aggressive / Moderate |
| Sub Category |
Mufflers |
| System Type |
Direct-fit Muffler |
| Tubing Diameter |
3.5 |
| Tubing Diameter (IN) |
3.5 |
| Tubing Material |
409 Stainless Steel |
| Type |
Direct-fit Muffler |
| Type of Muffler |
Absorption |
| Valve Actuator Included |
No |
| Valve Included |
No |
| Valve Type |
Not Applicable |
| Vehicle Type |
Truck/SUV |
| Warning |
California Proposition 65 |
| part type |
Exhaust Muffler Assembly |
